AlphaTIG 225Xi

Regular price $750.00 Sale price $900.00

Unit price per

only 0 left in stock

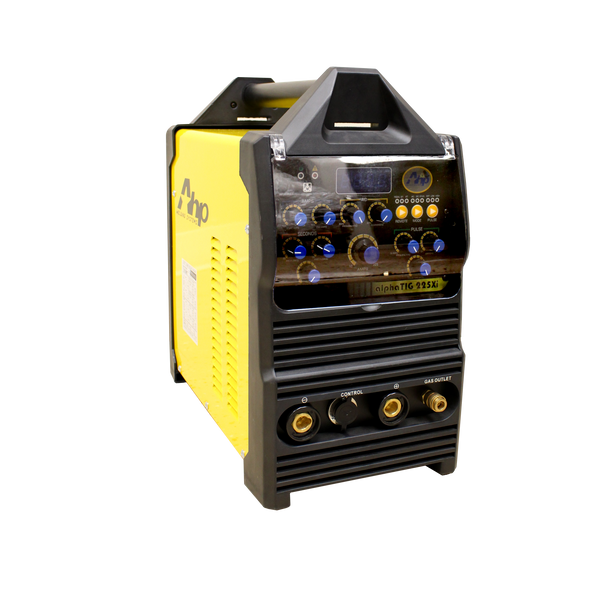

The AlphaTIG 225Xi is a modern AC/DC TIG/Stick welder with a modular IGBT inverter design that is digitally controlled for top performance. Designed to be versatile, this TIG welder is built to meet the daily needs of  most medium sized fabrication or repair shops.  It features dual voltage 120V/240V input capability for go-anywhere performance with up to 150A output while operating on 120V.  Fully adjustable pulse adds to the theme of versatility with a pulse frequency range in TIG mode up to a respectable 200Hz in both AC and DC modes.  While the unit is designed for the professional welder, the welder is also well within the scope of a beginner welder, with an easy to use interface, and a low entry price when compared to the competition.

Whether professional or novice, this unit features a 3 year, parts and labor warranty.

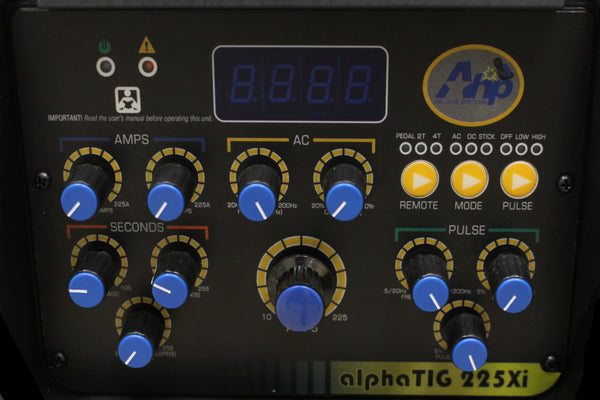

  • Digitally controlled functions and features
  • Internal modular board design

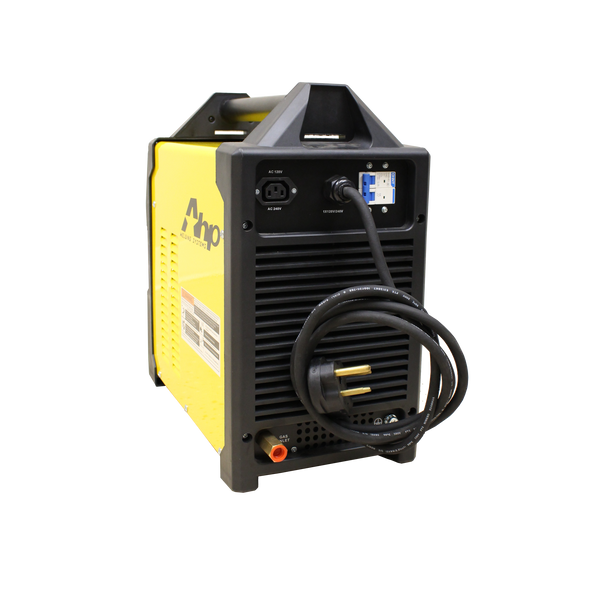

  • Water Cooler Power Outlet on Rear Panel
  • Powerful 225A AC/DC TIG welder (240V)
  • Stick weld with up to 5/32" Stick electrodes with output up to 185A (240V)
  • Adjustable AC TIG and Stick Frequency
  • Excellent stable arc while welding
  • High Frequency start only
  • 150A output operating on 120v input in TIG mode, (125A in Stick mode)
  • 35% duty cycle @ 225A in TIG mode operating on 240V (60% @ 200A, 240V)
  • Pulse frequency 0.5 to 200Hz
  • 2T/4T function

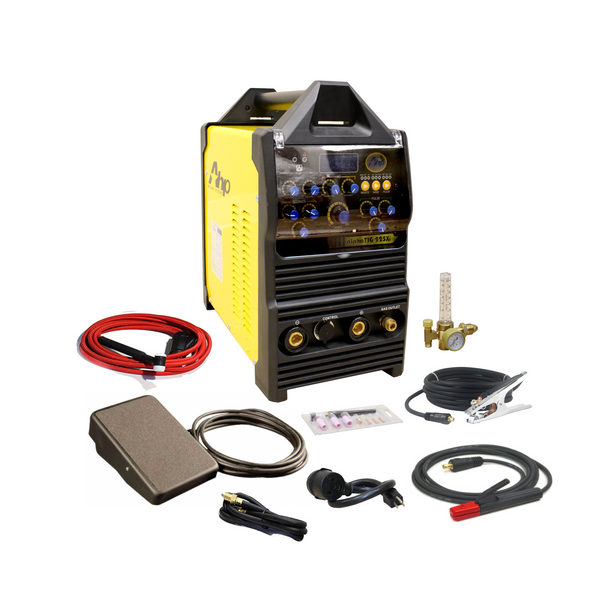

What's in the Box:
  • Alpha TIG 225Xi
  • Nova 26 TIG Torch (12.5ft, 35-70 DINSE Connection, 9mm Quick Connect and a Torch Switch for 2T/4T operation)
  • 250A Stick Electrode Holder (9ft)
  • Work Clamp (6ft)
  • Nova Foot Pedal (25 ft. Cord)
  • Floating Ball Type Billet Brass Argon Regulator
  • 240V to 120v Plug Adapter (NEMA 6-50R to NEMA 15-5P)
  • Basic Consumable Kit (does not include tungsten)
Processes : AC and DC TIG with pulse in AC and in DC, AC and DC Stick
Rated Electrical Input: 120/ 240v 50/60 Hz
Minimum Amp Start On DC/AC: 10A/20A
TIG(GTAW) Duty Cycle (240V): 225A/19V @ 35% Duty Cycle
TIG/Stick Open Circuit Voltage (OCV): 75V
STICK (SMAW) Duty Cycle (240V): 185 A, 27.4 V @ 35% Duty Cycle @ 40° C
MAX Inrush Amps:  120V: 42A, 240V: 35A
Effective Rated Amps: 120V: 25A, 240V: 24A
Foot Pedal: Nova long life, 25 ft. cable
TIG Start type: High Frequency Start (non live trigger/pedal actuated)
2T/4T Torch Trigger Panel Control Sequencer: Yes
Start Amps(2t/4t Trigger Function): 10(20)-225A
End Amps(2t/4t Trigger Function): 10(20)-225A
Pre Flow Time for Gas: 0-10 Seconds
Post Flow Time for Gas: 0-25 Seconds
Down Slope Time (Ramp Down): 0-10 Seconds
AC Balance Control: 10-90% of Electrode Positive
AC Frequency Control: 20-200 Hz
Pulse Frequency Range: .5-200Hz (AC or DC)
Pulse Amp Control: 5-95% of Welding Amps
Pulse Time ON/ Pulse Width Ratio: 5-95% of Pulse Amps
Weight: 50 lb
Dimensions: 22 in × 9.25 in × 24 in

User Manual/Brochure

Download the AlphaTIG 225Xi User Manual

Download Brochure
